IELTS graph 320 - How electricity is generated in a hydroelectric power station

IELTS Academic Writing Task 1/ Graph Writing - Diagram:

You should spend about 20 minutes on this task.

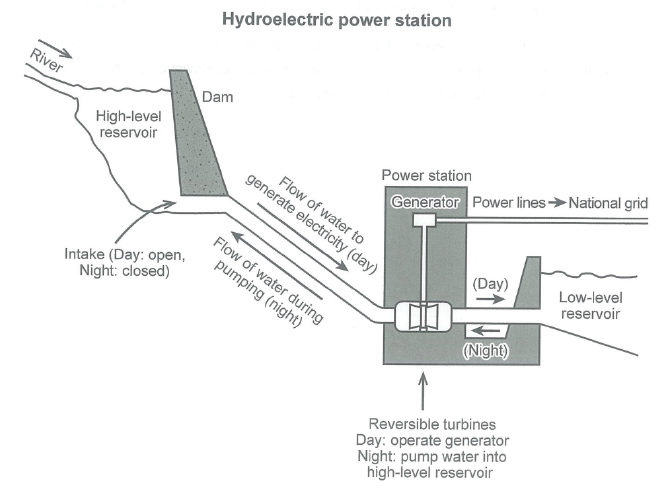

The diagram below shows how electricity is generated in a hydroelectric power station.

Summarize the information by selecting and reporting the main features, and make comparisons where relevant.

Write at least 150 words.

Map - how electricity is generated in a hydroelectric power station



Model Answer:

The diagram outlines the process of electricity production in a hydroelectric power station. The process begins when the water flows from the river into a high-level reservoir and ends with the transmission of electricity to the national grid.

In general, the process is broadly distributed into day and night stages with the daylight stages involving electricity production from a river and storage of water in a reservoir. At night, the water flows back in the opposite direction towards an initial reservoir and the river.

The day stage of the process involves channelling the river water into a high-level reservoir backed up by a dam. There is an intake area leading to the power station that opens during the day and closes at night. Water flows during the day to generate electricity through the power station turbines. The generated electricity is then sent to a national grid through power lines while the excess water runs to a low-level reservoir.

During the night stage, the water stored in the low-level reservoir is reverted to the power station and the turbines of the generator pump it back into the high-level reservoir which is closed during the night. The river water is stored at the upper level and later it flows down, starting the cycle again.
